Panel Mount USB-C Extension Cable Large Gauge F-M


Categories:
> Panel-Mount USB-C Cables, USB-C Cables

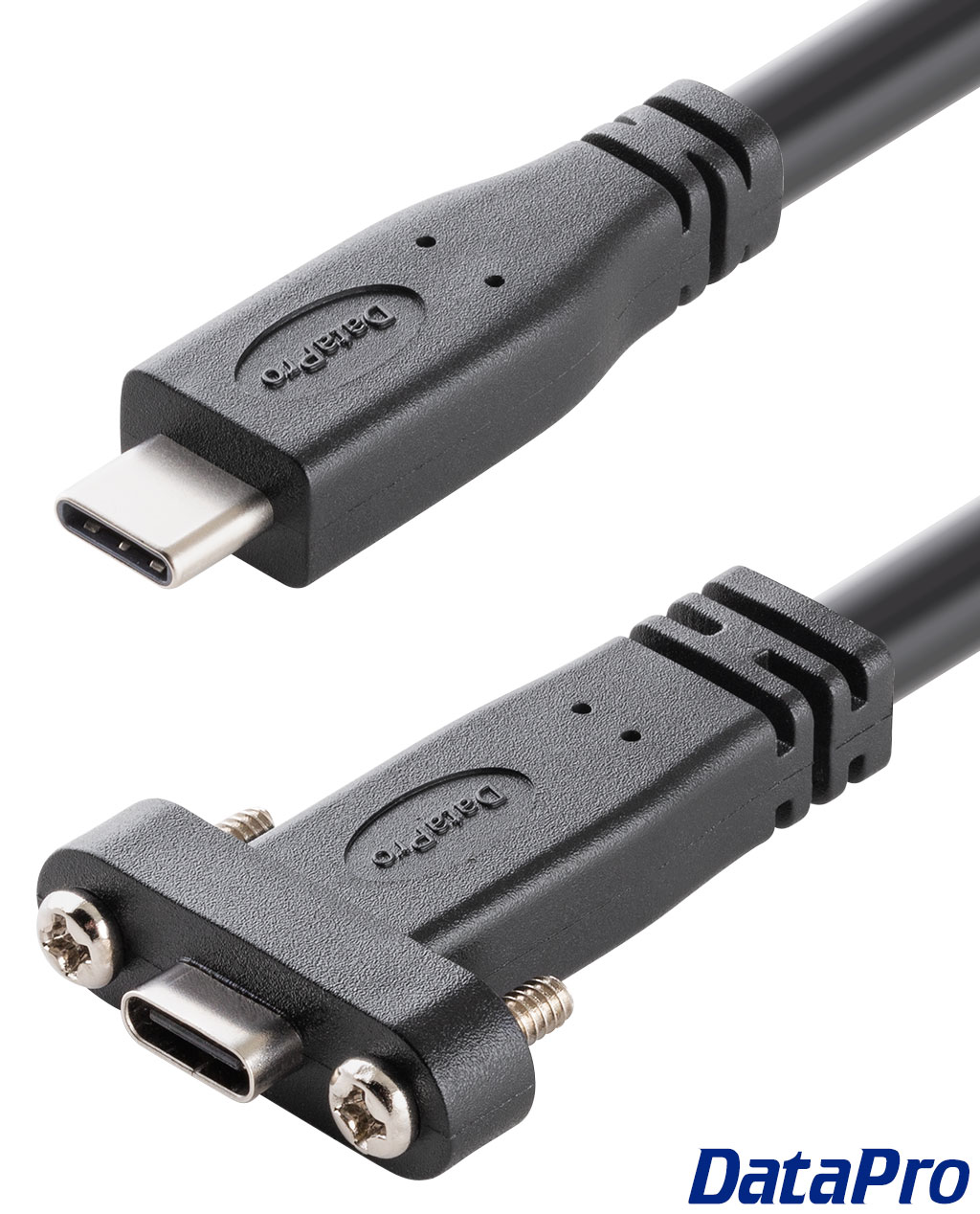

Panel Mount USB-C Extension Cable Large Gauge F-M
Give your panel-mount USB-C installation extra reach with these large-gauge extension cables.

1638-02C   Panel-Mount USB Type-C Ext   2 ft $ 24.95   998 in stock   Add to Cart
1638-03C   Panel-Mount USB Type-C Ext   3 ft $ 26.95   389 in stock   Add to Cart
1638-04C   Panel-Mount USB Type-C Ext   4 ft $ 28.95   45 in stock   Add to Cart
1638-06C   Panel-Mount USB Type-C Ext   6 ft $ 30.95   185 in stock   Add to Cart
1638-10C   Panel-Mount USB Type-C Ext   10 ft $ 32.95   223 in stock   Add to Cart

These USB-C cables are constructed with the largest gauge internal wiring available, allowing for maximum passive length. They are capable of carrying power, data, and video signals up to 10ft (3m). Mounting hardware is included.

Please note that these cables are not suitable for use with Thunderbolt, although they can be used with some setups at lengths of 2ft and 3ft. For Thunderbolt compatibility, we recommend our part 1648.


Drawings & Models:

PartDownloads
1638PDF Drawing (PDF)STEP Model (STEP)


RoHS Compliant
REACH Compliant

Related Products:

Features:

  • Panel-mountable Female USB Type-C connector
  • USB Type-C Male connector
  • Includes mounting hardware
  • Gold-plated contacts
  • Shielded to minimize Electromagnetic / Radio Frequency Interference (EMI / RFI)
  • Supports DisplayPort, HDMI, MHL, and Analog audio Alt Modes
  • USB 3.2 Gen 2 Compatible


Specifications:

  • 1x Panel-Mountable Female USB Type-C Connector
  • 1x Male USB Type-C Connector
  • Backwards compatible with USB 1.1/2.0
  • USB 3.1 SuperSpeed USB 10Gb/s
  • USB 3.2 Gen 2 20Gb/s
  • USB Power Distribution compatible up to 100W (20V 5A)
  • Aluminum/Mylar Foil Wrap + Braided Shielding
  • Wire Gauge 29/32/34/24 AWG
  • REACH Compliant
  • RoHS Compliant
  • Embedded 4-40 nuts with mounting screws included
  • Allowable panel depth: 2.5mm (full mating)
  • Recommended screw installation: Hand tighten, 2.0 in-lbs maximum torque
