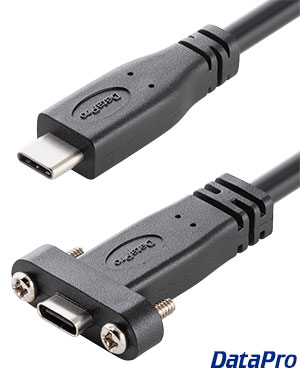

Panel Mount USB4 Thunderbolt Extension Cable F-M

DataPro's premium panel-mount USB-C extension cables are designed for seamless integration into any device or system. These high-performance cables are capable of carrying nearly all USB-C formats, including USB4 and Thunderbolt, delivering lightning-fast data transfer speeds, reliable power delivery, and high-resolution video. Featuring rugged construction and easy installation, mounting hardware included.

Part	Downloads
1648	Drawing (PDF)	Model (STEP)

Features:

• Panel-mountable Female USB Type-C connector
• USB Type-C Male connector
• Includes mounting hardware
• Gold-plated contacts
• Shielded to minimize Electromagnetic / Radio Frequency Interference (EMI / RFI)
• Supports DisplayPort, HDMI, MHL, and Analog audio Alt Modes
• USB4 Compatible
• Thunderbolt 3 and Thunderbolt 4 Compatible

Specifications:

• 1x Panel-Mountable Female USB Type-C Connector
• 1x Male USB Type-C Connector
• Backwards compatible with USB 1.1/2.0
• USB 3.1 SuperSpeed USB 10Gb/s
• USB4 Gen 4x2 40Gb/s
• USB Power Distribution compatible up to 100W (20V 5A)
• Aluminum/Mylar Foil Wrap + Braided Shielding
• Wire Gauge Coaxial 30/34/23/34
• REACH Compliant
• RoHS Compliant
• Embedded 4-40 nuts with mounting screws included
• Allowable panel depth: 2.5mm (full mating)
• Recommended screw installation: Hand tighten, 2.0 in-lbs maximum torque
