DataPro Plate Designer Pro

1 Gang

2.75" x 4.50"

2 Gang

4.50" x 4.50"

3 Gang

6.50" x 4.50"

4 Gang

8.25" x 4.50"

5 Gang

10.00" x 4.50"

Aluminum
1 Gang

2.75" x 4.50"

Aluminum
2 Gang

4.56" x 4.50"

Aluminum
3 Gang

6.38" x 4.50"

Aluminum
4 Gang

8.19" x 4.50"

Decora

UK & EU 1 Gang

8.50cm x 8.50cm

UK & EU 2 Gang

14.50cm x 8.50cm

Industrial

4.00" x 4.00"

PCI Expansion Slot Cover

4.75" x 0.90"

Horizontal

5.5" x 2.5"

Square

2.5" x 2.5"

Mini Plate 1

2.75" x 3.75"

Mini Plate 2

2.28" x 3.75"

Mini Plate 3

4.09" x 3.75"

Mini Plate 4

5.91" x 3.75"

Neutrik D/XLR Module

1.02" x 1.20"

500 Series 1U Module

1.50" x 5.25"

Telecom Module

3.20" x 1.90"

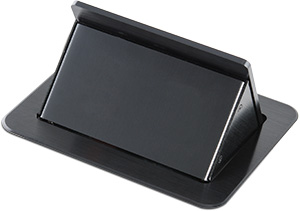

Tabletop Pop-up Box
(Product page)

5.80" x 3.00"

RC-DISH01
Small Recessed Dish

5.12" x 3.50"
(3.84" x 2.12" Usable)
(More information)

RC-DISH02
Medium Recessed Dish

4.41" x 4.02"
(3.15" x 2.76" Usable)
(More information)

RC-DISH03
Large Recessed Dish

7.00" x 5.00"
(5.48" x 3.50" Usable)
(More information)

RC-DISH04
Specialty Recessed Dish

6.75" x 2.75"
(5.14" x 1.06" Usable)
(More information)

Need assistance with a more complex design?
Check out our Custom Rackmount Solutions page.
We also offer Engineering and Design services.

1U Half-Width
Rack Panel
(Product page)

10.50" x 1.75"

1U Custom
Rack Panel
(Product page)

19.00" x 1.75"

2U Custom
Rack Panel
(Product page)

19.00" x 3.50"

3U Custom
Rack Panel
(Product page)

19.00" x 5.25"

4U Custom
Rack Panel
(Product page)

19.00" x 7.00"

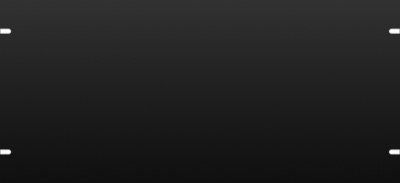

5U Custom
Rack Panel
(Product page)

19.00" x 8.71"

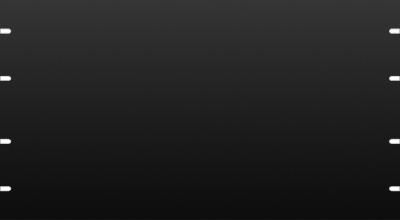

6U Custom
Rack Panel
(Product page)

19.00" x 10.47"

1U x 19" Custom
Rack Mount Case
(Product page)

Includes front and rear panels
Dimensions:
16.75" x 1.75"

2U x 19" Custom
Rack Mount Case
(Product page)

Includes front and rear panels
Dimensions:
16.75" x 3.50"

3U x 19" Custom
Rack Mount Case
(Product page)

Includes front and rear panels
Dimensions:
16.75" x 5.25"

4U x 19" Custom
Rack Mount Case
(Product page)

Includes front and rear panels
Dimensions:
16.75" x 7.00"

Middle Atlantic Rack Module (Single)
Fits Middle Atlantic Modular Rack Panel Frame

3.39" x 3.49"

Middle Atlantic Rack Module (Double)
Fits Middle Atlantic Modular Rack Panel Frame

6.79" x 3.49"

Our case panels are CNC milled, and guaranteed to fit. For more options, see:

For case modifications and dish panel installation, see our Pelican Case Services page.

Pelican Nameplates:

Select Nameplate

Select Base Panel

Select Sub-Panel

Select Base Panel

Select Lid Panel

Select Sub-Panel

Select Base Panel

Select Sub-Panel

Select Base Panel

Select Lid Panel

Not for use with NANUK-R Cases

We do not recommend using these panels in NANUK-R cases due to dimensional variations. If you need a panel for a NANUK-R case, please contact us for options.

Select Base Panel

Select Base Panel

Select Lid Panel

Design a custom rack panel, enclosure, or module here.
